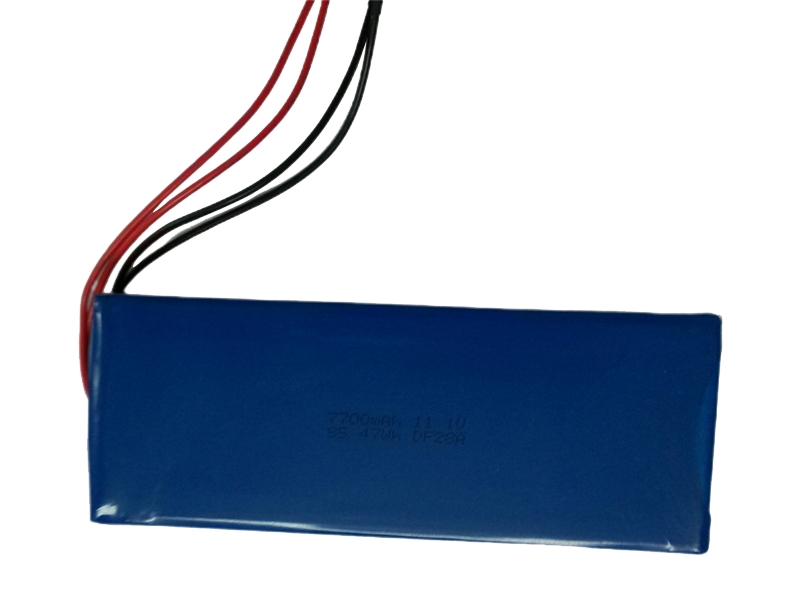

11.1V polymer lithium battery Product model: XL 11.1V 7700mAh
11.1V polymer lithium battery technical parameters (specifically can be designed according to customer requirements-voltage/capacity/size/line)
Single battery model:6556138
· Single battery voltage: 3.7V
· Nominal voltage after the battery pack is assembled: 11.1V
· Single battery capacity: 3850mAh
· Battery combination: 3 strings and 2 parallel
· Battery voltage range after combination: 7.5V~12.6V
· Battery capacity after combination: 7700mAh
· Battery pack power: 85.47W
· Battery pack size:6.5*57*145mm
· Maximum discharge current: <6A
· Instantaneous discharge current: 8A
· Maximum charging current: 0.2-0.5C
· Charge and discharge times: >500 times
· Main chip: (Seiko, TI)
11.1V polymer lithium battery
· Comply with relevant national standards and requirements for batteries
All finished battery products have been calibrated and tested before leaving the factory. They can be used directly and normally.
